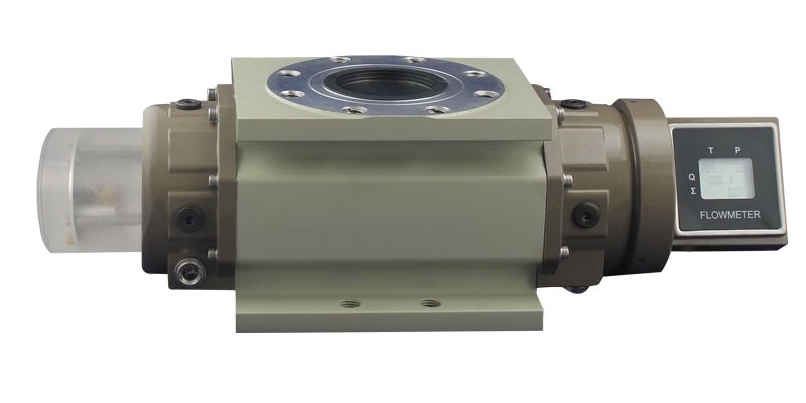

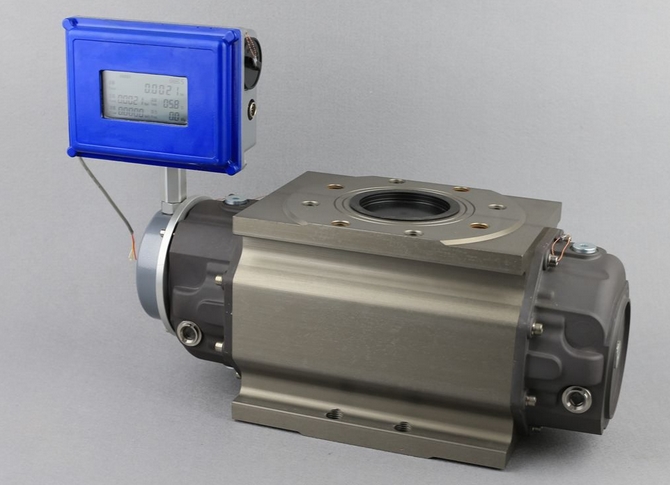

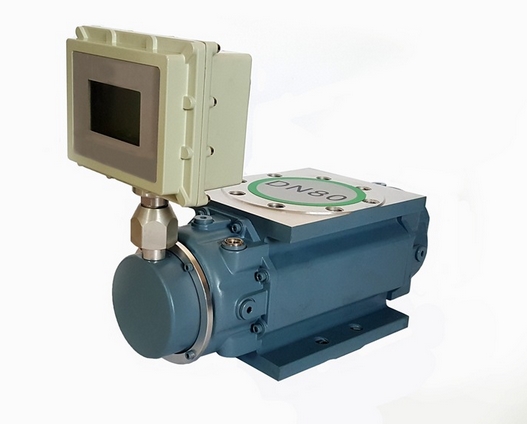

LLQ series Intelligent gas lobed rotor (Luo Ci) flowmeter Is a set of flow, temperature, pressure detection function and a body, And temperature, pressure automatic compensation of a new generation of flowmeter, The flowmeter Based on the volumetric The measuring principle of, For accurate measurement of flow through the closed pipe Total gas. Flowmeter based type by the waist wheel flow sensor And flow totalizer (two meter) of two parts. The flowmeter adopts advanced microprocessor technology and micro power consumption of high technology, Of the measured medium Are arranged in the press Automatic tracking compensation operation and temperature, And directly display the standard state(P0=101.325Kpa，T0=293.15K) Total volume.
LLQ series Intelligent gas lobed rotor (Luo Ci) flowmeter Execution machinery industry standard of the people's Republic of China JB/T7385-94 ≤Gas flowmeter≥And the enterprise standard≤LLQ type gas flowmeter≥。
LLQ series Intelligent gas lobed rotor (Luo Ci) flowmeter Widely used in restaurants, hotels and other industries Gas trade settlement, Pipeline gas metering, gas pressure regulating station measurement, industrial and civil boiler gas metering, Can also be used as industrial propane, nitrogen, inert gas and other non corrosive gas standards and metrology.
The accuracy is high, repeatability is good. Internal rotor by the precision machining and balance test, Oil lubrication good, To ensure the accuracy of flowmeter invariant, Long operating life.
流量計前后不需要直管段，可以安裝在環境狹窄的場合。
Flowmeter before and after need not straight pipe, can be installed in a narrow environment.
始動流量小，量程比寬，適合于計量量程變動大的氣體流量。
Small starting flow, wide measurement range, Suitable for measurement The change of gas flow in large range.
計量度不受壓力和流量變化的影響，性能穩定，壽命長。
The measurement precision is not affected by pressure And flow The effects of the changes, Stable performance, long life.
通用性好，所有腰輪流量傳感器均可使用通用的附件。
Good versatility, All the waist wheel flow sensor Can use general accessories.
The configuration of the RS485 communication interface IC card and special Signal concentrator supporting, And through the GPRS/CDMA、internet、The telephone network Remote data acquisition and monitoring system, Centralized collection for data And real time management.
電路采用表貼安裝工藝，結構緊湊、抗干擾能力強、可靠性高。
Circuit using surface mount installation process, Compact structure, strong anti-interference ability, high reliability.
Micro power High and new technology, Internal, external power supply, The low power consumption, Only by a 5 3.6VDC lithium battery, Can work continuously for more than three years.
就地顯示流量值，并帶多種信號輸出功能。
Local display flow value, and with a variety of signal output function.
Use high contrast Liquid crystal display, Can display the standard cumulative flow, The standard volume flow, Condition of volume flow The percentage of, Medium temperature, pressure value And battery usage percentage, And take the Chinese prompt.
